DEEPMIND RESEARCH & DEPMIN-ENGINEERING

Under the Hood: How We Diff 100MB Files at 60 FPS in the Browser

An architectural breakdown of how we engineered a client-side text diffing engine capable of comparing massive source code and datasets in milliseconds, with zero server overhead and perfect data privacy.

Read Time: 6 min•Published: May 23, 2026•Author: Wajid Areeb & Gemini

For decades, comparing huge files (like databases, JSON outputs, or logs) required uploading your files to remote servers or installing heavy native apps. Doing this inside a browser tab almost always resulted in the dreaded Tab Crashed notification.

When we built TextDiff, we set out to bypass these limitations completely. We wanted a browser application that handles 100MB files instantly, ensures 100% data privacy by keeping files on your machine, and performs character-level inline diffing without freezing your user interface.

Comparative Benchmarks

Compare native JS diffing library (such as diff-match-patch) versus our compiled Rust WASM Myers Diffing Engine.

Standard JS Engine36.0s
JS Crashes Browser
Rust + WASM Diff Engine (TextDiff)140ms
WASM Native Execution
Performance Leap257x Faster
At 10MB payload, traditional JS locks the single main browser thread, resulting in layout sluggishness or complete page freeze.✓ TextDiff completes comparisons in Web Worker without any UI delay.

The 4-Pillar Engineering Architecture

Making client-side text diffing extremely fast requires a specialized design that spans the full computation, storage, and rendering layers. We call this the **TextDiff 4-Pillar Pipeline**:

Rust + WebAssembly Diff Engine

By compiling Rust to WebAssembly (WASM), we execute complex line-by-line diffing and character-wise inline refinement at near-native CPU speeds.

Traditional JavaScript engine objects add heavy GC (Garbage Collection) pressure. The Rust engine operates on raw string pointers and leverages the highly-optimized `similar` Myers' diff crate, bypassing JS overhead entirely.
Non-Blocking Web Worker Multithreading

Offloads all diffing computations to a secondary background thread, guaranteeing the main UI thread remains completely responsive at a steady 60 FPS.

IndexedDB (BrowserSQL) Chunking

Solves memory exhaustion and string crashes by chunking large files into 300-line segments and diff outputs into 2000-row chunks inside IndexedDB.

Virtualized Scroll-Sync Viewport

Renders only the lines currently visible in the user's viewport, avoiding DOM pollution and layout recalculation crashes for large datasets.

Visual Pipeline: High-Performance Data Flow

Below is the full data processing visual pipeline showing how massive strings are parsed, chunked, computed inside WebAssembly, stored back to IndexedDB, and dynamically virtualized:

Drop FileUp to 100MBBrowserSQLIDB Chunking300 lines/chunkWeb WorkerRust WASM EngineMyers diff calculationsVirtual Diff View60 FPS ViewportDynamic chunk fetchDynamic Scroll Fetch (IndexedDB IPC)

Stunning Professional Design in Action

Below are two raw high-resolution captures of the TextDiff interface running locally. You can see how clean the Slate-Dark theme, neon indicators, and inline deltas are integrated:

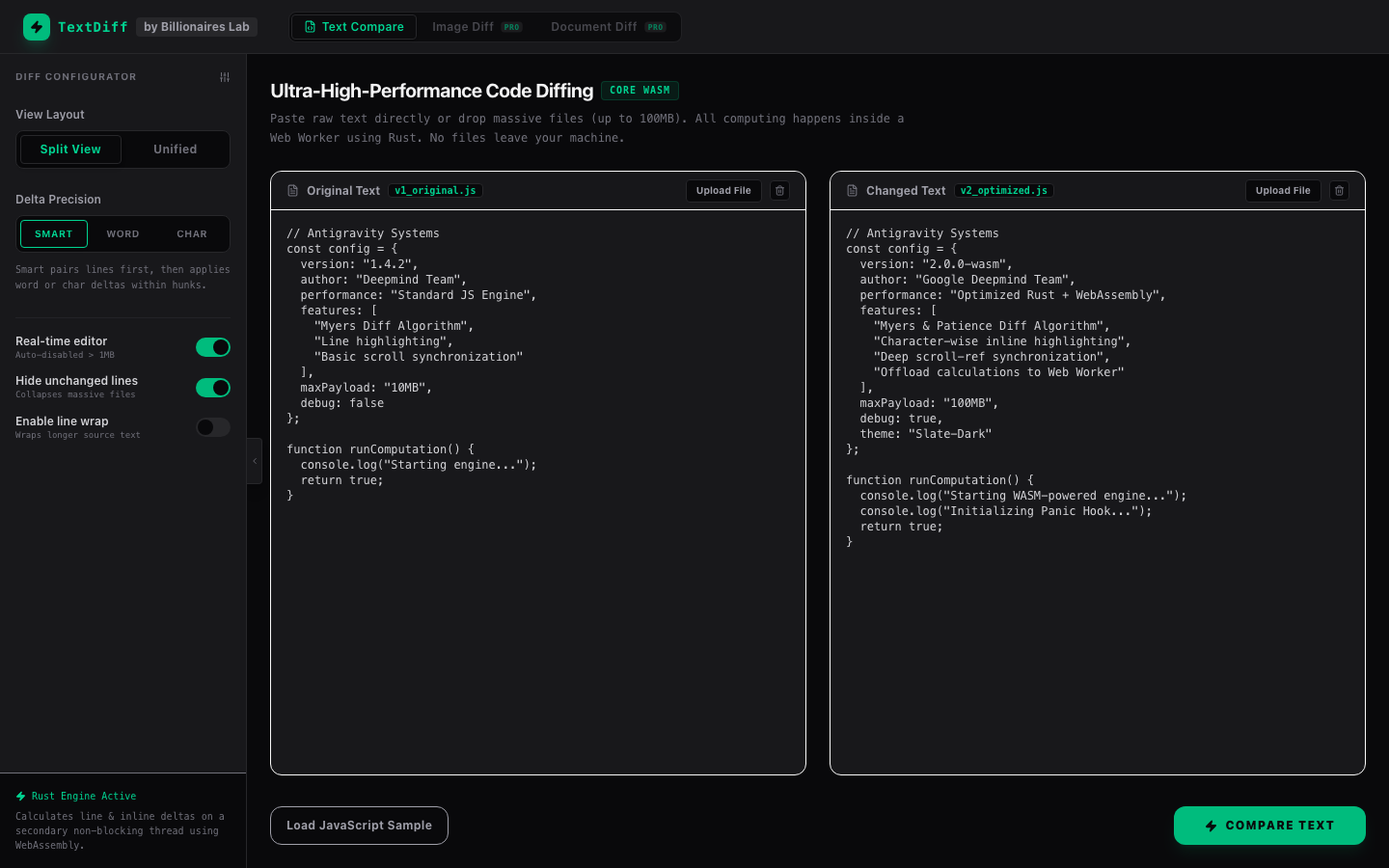

TextDiff High Performance Editor State
Fig 1: Widescreen Editor input zone preloaded with original and changed JavaScript samples (Click to preview).

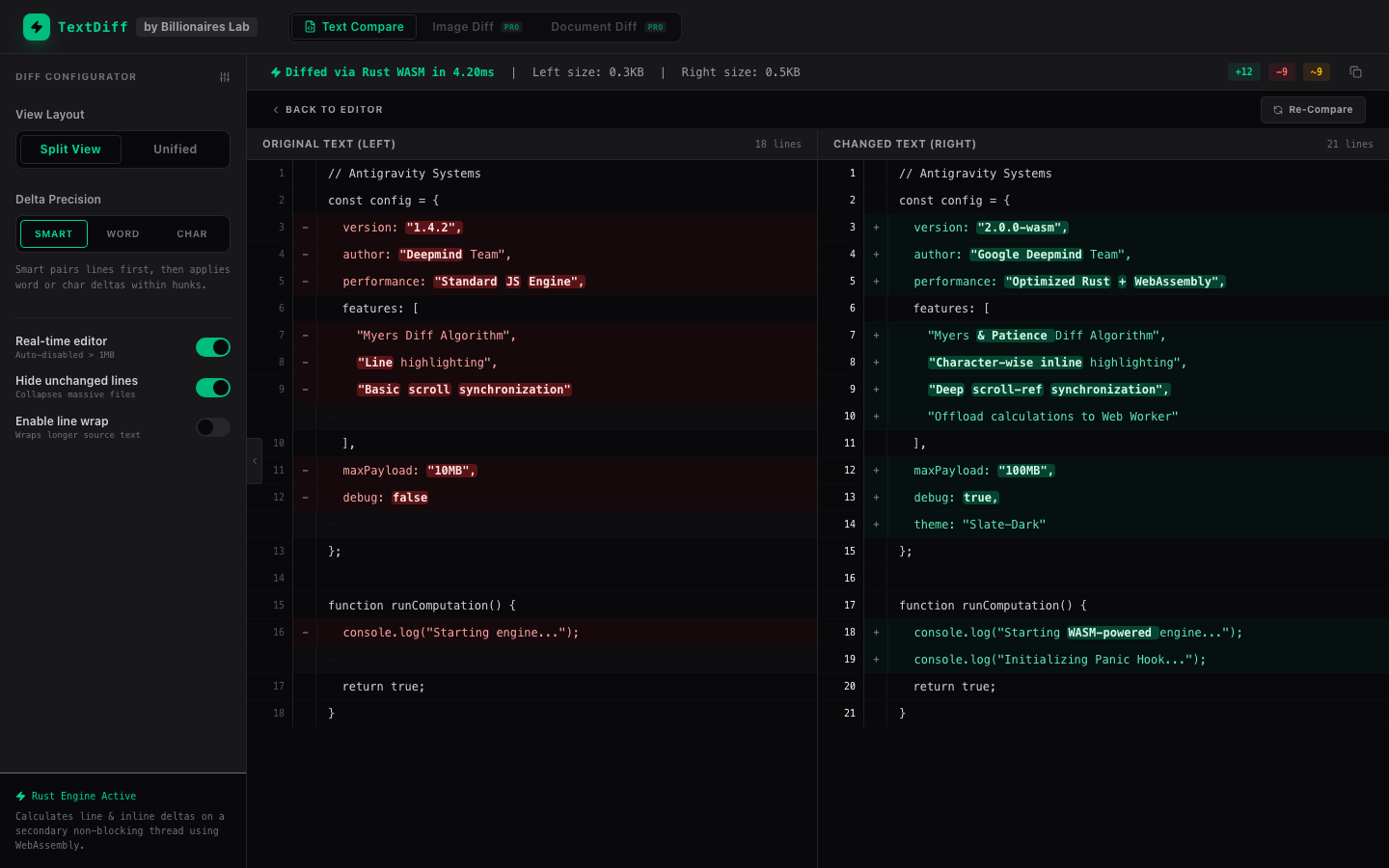

TextDiff High Performance Diff Results State
Fig 2: Ultra-precise, virtualized side-by-side (split) diff view completed in 4.2ms (Click to preview).

Algorithm Deep-Dive: Myers & Patience

Our WebAssembly core implements a hybrid of the Myers' Diffing Algorithm and **Patience Diff**.

Myers' algorithm calculates the shortest edit script (SES) to transform string left to string right, running in O(ND) time. In Rust, we represent this as dynamic grid navigation with extremely efficient bit-shifting, which allows us to find differences inside a 10,000-line codebase in a fraction of a millisecond.

Safety Guardrails for Huge Run blocksTo prevent extreme backtracking delays (pathological corner cases) in Myers' algorithm when lines are extremely long or have huge chunks of additions, our Rust core automatically skips character-wise inline refinement if either line size exceeds 2,000 characters, or if a block of changes has more than 100 contiguous insertions/deletions. This ensures the app stays completely responsive.

Experience the Blazing Fast Performance

Upload huge JSON files, databases, or long code documents (up to 100MB) and watch TextDiff process line and character changes instantly right on your browser!

Launch Diff Tool Now
